Paul managed to smash up his Narrow bodied Westfield, so one insurance job later, and he has a new car
using lots of the bits from the old car. Looks mighty fine now.
Click images to enlarge
The New look Widebody
I beleive Paul made his own rollbar

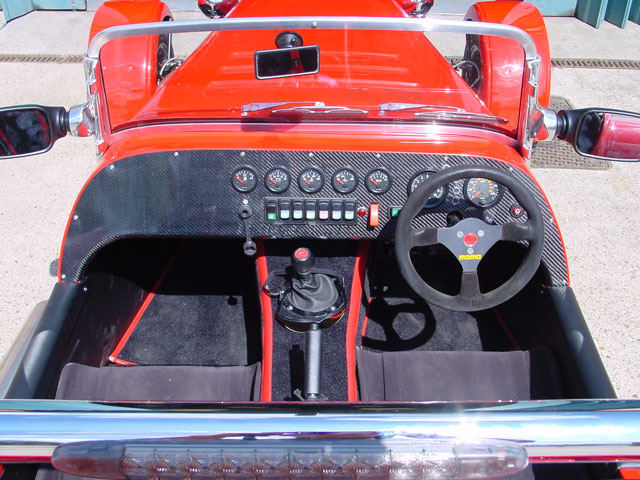

Carbon fibre Dashboard, the best
Interior picture showing race seats

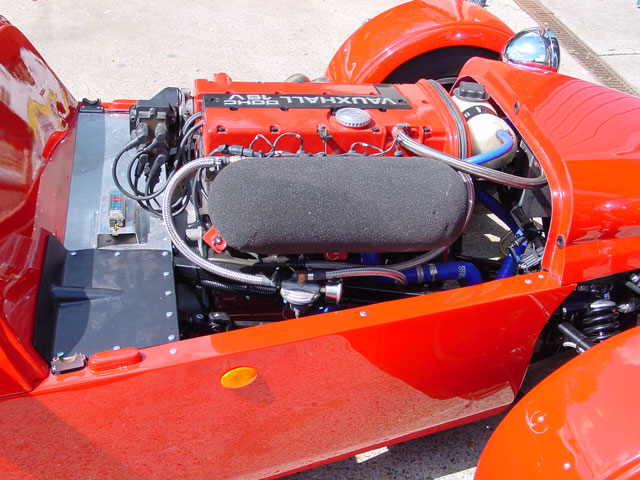

Tidy engine VX installation
Long shot from front of engine
Rear pic of engine showing sweeping exhaust
Close-up of the Simpson Manifold

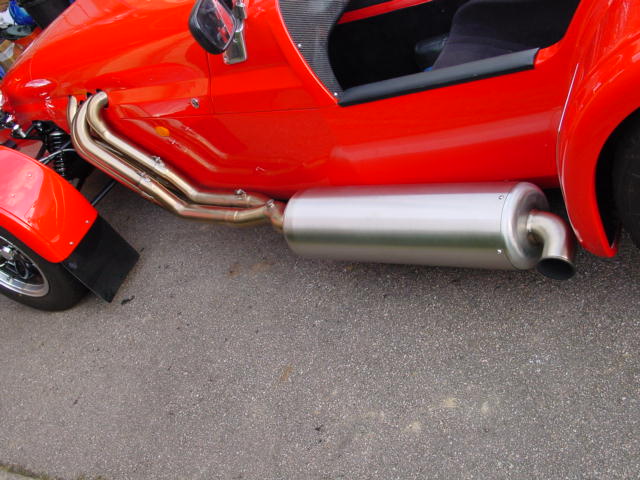

Overall view of the superb Simpson exhaust system
Picture of dashboard during rebuild

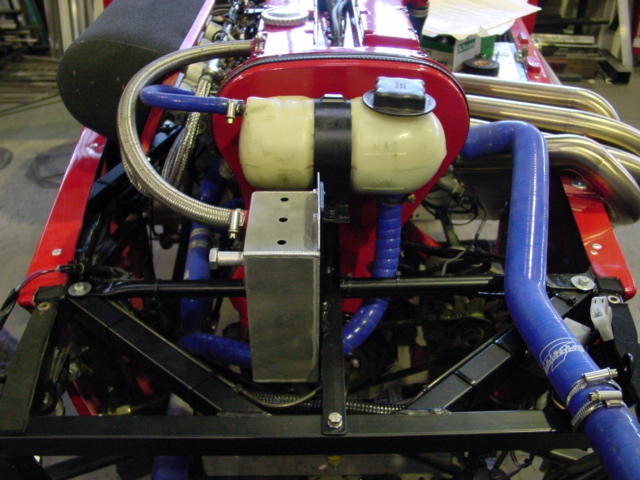

Expansion tank setup under the bonnet

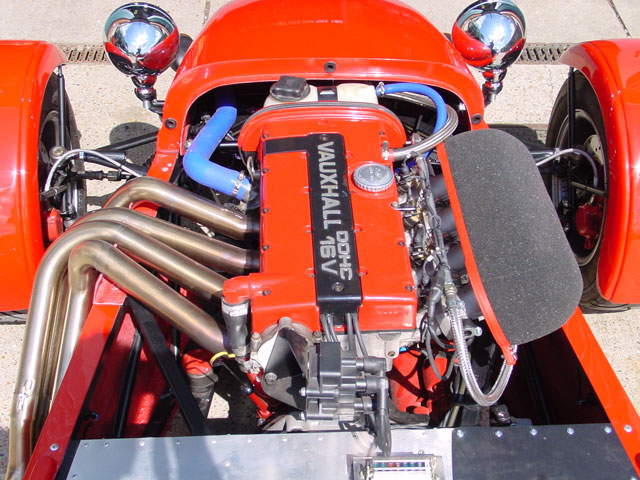

Vauxhall XE engine, good choice
Another engine view
Showing the Jenvey throttle bodies
Specification sheet of Paul's Westfield
Chassis & Body- 2005 SEiW (detacheable arches) in Red
- Ali panels & brake lines fitted by WF
- Extra race bracing & race chassis design / but in std box section
- ZK bodywork (RED)
- Chromed RAC rollbar c/w premier wiring (hella) high level brake light
- Polished Ali windscreen & uprights
- WF epoxy coat / shotblast finish
- Floor mounted pedals
- WF front grille
- Vauxhall 2.0 redtop engine
- Rebuilt with ARP Rod bolts
- Forged 'flat top' Accralite pistons.
- Lightened flywheel
- Lightened & balanced bottom end
- SBD 208 kit / taper throttle bodies / Swirl pot
- MBE 967 ECU / management system
- SBD lowline baffled sump (c/w own hinge baffle system)
- Polo radiator
- Silicon radiator hoses
- Electronic cooling fan
- Oil catch tank
- Simpson bonnet exit Race exhaust (bespoke built) 4-2-1 stainless (to SBD spec.)
- Simpson Silencer 28" x 7" OD stainless repackeable
- SBD alloy bell housing, clutch arm lever
- SBD Kevlar clutch plate
- BGH type 9 sporting close Heavy Duty E7 2.8 gearbox
- (Ratios 1st 2.75 2nd 1.75 3rd 1.26 4th 1.00 5th 0.86)
- Bailey Morris HD propshaft
- BGH rebuilt 3.92 Viscous LSD differential (Sierra)
- WF driveshafts, uprights, hubs.
- WF widetrack front wishbones
- WF quickrack
- WF steering column (modified for Momo removeable steering wheel)
- Cortina cast uprights
- AVO front / rear shock absorbers
- WF springs (front 300lbs 8" 1.9 / Rear 195lbs 9" 1.9)
- 13" x 7" Minator wheel rims
- Yokohama AO48 tyres 205/60/13 soft compound front/ medium compound rear
- WF AP master cylinder
- MI 16 (std) front callipers
- Cortina discs, cross drilled.
- Mintex 1144 brake pads
- WF ball joints etc
- Sierra rear callipers (std)
- Std rear brake pads
- WF Velour covered race seats.
- WF sliding mounting kit
- WF carpet set
- WF Willans 4 point harnesses
- WF kick strips
- WF vynil covered internal panels
- WF carbon lighting kit.
- WF aero fuel cap
- Datatool "turn alert" indicator warning system
- Fire extinguisher
- Aluminium glove box.
- Plays Kool carbon dash panel
- VDO cockpit vision gauge set + 0-10,000 rpm Rev counter, + sensors
- Oddesey PC 625 drycell battery.
- FIA kill switch
- Durite rocker switches
- ETB warning lamps
- Premier wiring harness.
- 12v accessory socket
- WF side screens
- WF hood.
- Soft bits for Sevens Tonneau & boot cover
